レーザー変位センサー

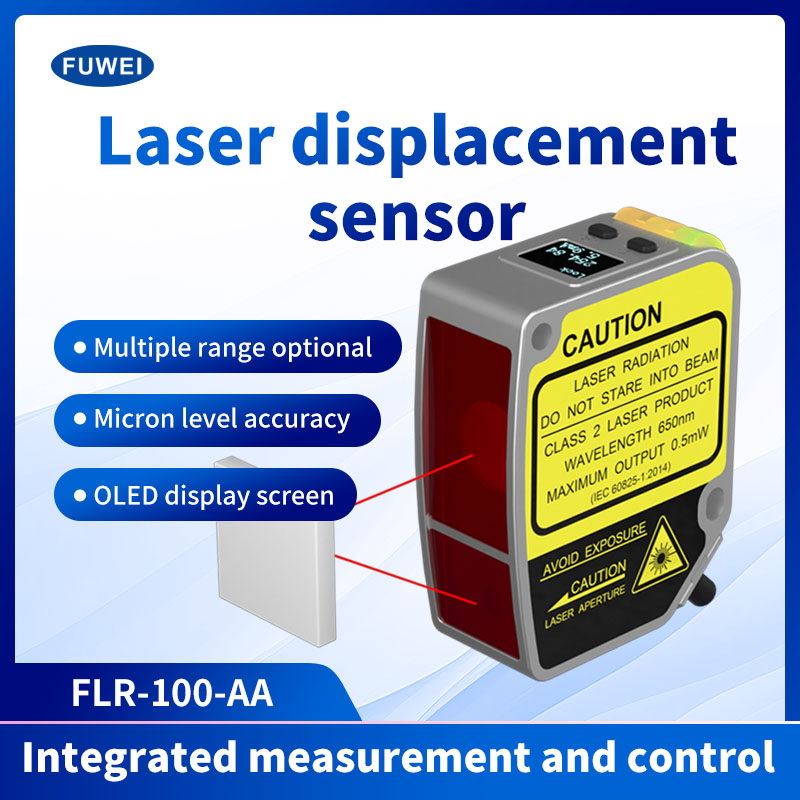

Measuring range: 25-35mm Output mode: with switching, current 4-20mA Linearity accuracy: ±0.1% F.S. (25-35mm) Repeatability: 5um Resolution: 2.5um Spot size: Φ0.5mm at 30mm Response time：2ms/16ms/40ms Ambient light resistance: incandescent light ≥ 3,000lux Operation panel: OLED digital display Temperature drift: ±0.02%F.S./°C

Measuring range: 25-35mm Output mode: with switching, current 4-20mA Linearity accuracy: ±0.4% F.S. (25-35mm) Repeatability: 5um Resolution: 2.5um Spot size: Φ0.5mm at 30mm Response time：2ms/16ms/40ms​ Ambient light resistance: incandescent light ≥ 3,000lux Operation panel: OLED digital display Temperature drift: ±0.02%F.S./°C

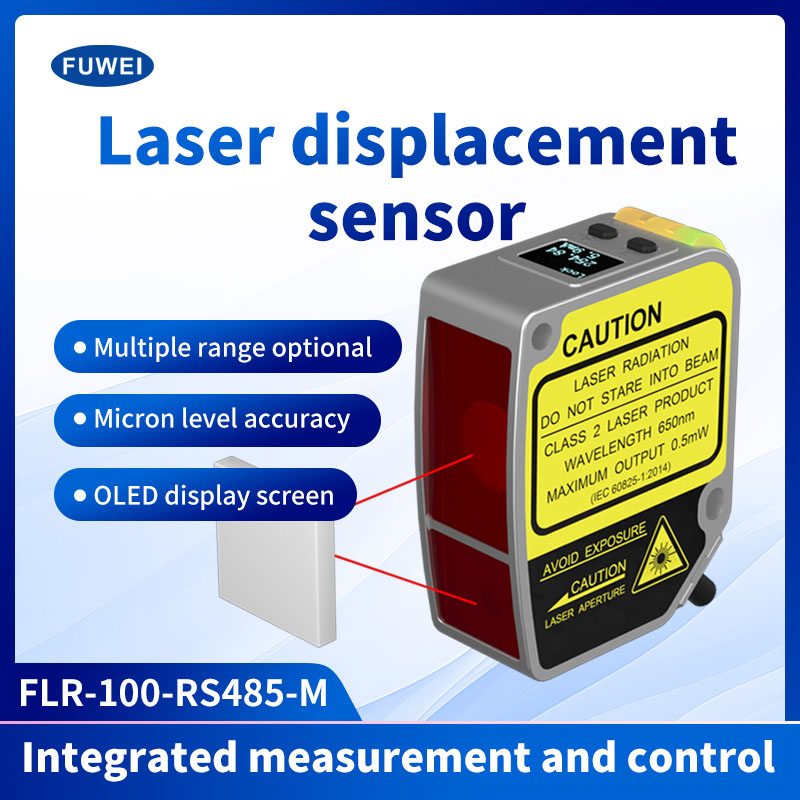

Measuring range: 150-1000mm Output mode: with switch quantity and RS485 communication (support ModBus protocol) Linearity accuracy: Standard: ±0.6% F.S; Resolution: 50um at 150mm; 2mm at 1000mm Spot size: Φ3mm at 1000mm Response time: 2ms/16ms/40ms settable

Measuring range: 150-1000mm Output mode: with switch quantity and current 4-20mA Linearity accuracy: standard: ± 0.6% F.S. Resolution: 50um at 150mm; 2mm at 1000mm Spot size: Φ3mm at 1000mm Response time：2ms/16ms/40ms can be set

Integrated measurement and control of digital display laser displacement sensor Measuring range of 30-1000mm with a variety of ranges to choose from Convenient operation panel configuration OLED digital display With analog and RS485 communication (support ModBus protocol) communication multiple outputs Linear accuracy up to +0.1% F.S. Resolution up to 5um
